Omnia Manual Pinch Valve Series
Manual Pinch Valves for Single-Use Applications
The patented BPV manual pinch valve series can be used on any tubing or flow kit, including reinforced tubing, and allows the customer to change tubing line size on site through the changeout of an insert kit.
Key Features
For use with all Tubing Brands/Compounds
Available in line sizes from 1/16" ID to 1" ID
Retrofitted on site allowing numerous tubing line sizes – Insert Kit

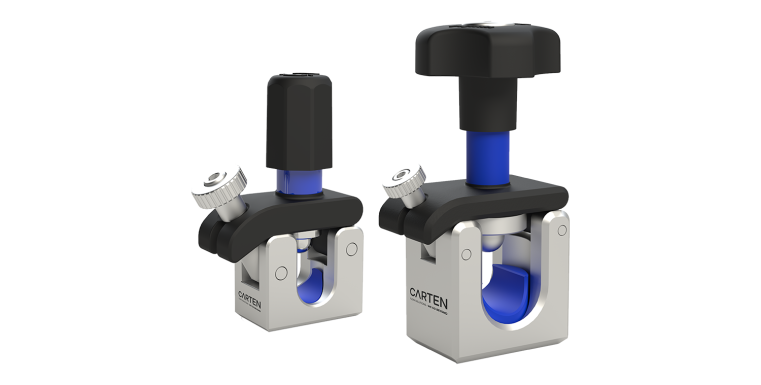

Two footprints available – Small BP25 and Large BP50
Typical Applications
All upstream, downstream, fill-finish applications in single-use, applications requiring multiple line size interchangeability, high pressure pump shut-off, PUPSIT, sampling, fluid transfer applications.
Key Specifications
| Materials of Construction | Cleanliness | Specifications | Options |
|---|---|---|---|
| 304/316 stainless |
Manufactured in White Room |
100% Leak tested as per ASME BPE / ANSI FCI 70/2 Class VI |
Multiple brands, compounds, and tubing line sizes |
| PTFE-coated bonnet |
One piece valve assembly - lockout screw design |
Tubing: 300 without failure using flowing water at max pressure of tubing |
Custom insert kits (holder and compressor) |
| Body, Compressor: ASTM A479 316L (S31603) |
Rapid change-out of tubing line sizes – Suitable for continuous manufacturing |
Electropolished as per ASME BPE, ASTM A967 |
Multiple tube holders allowing tubing line size options |
| Light weight PPS handwheel (40% G.F) |
No lubricant or grease at tubing insert area |
Passivated as per ASME BPE, ASTM B912 |
Custom stainless steel mounting options available on request |
