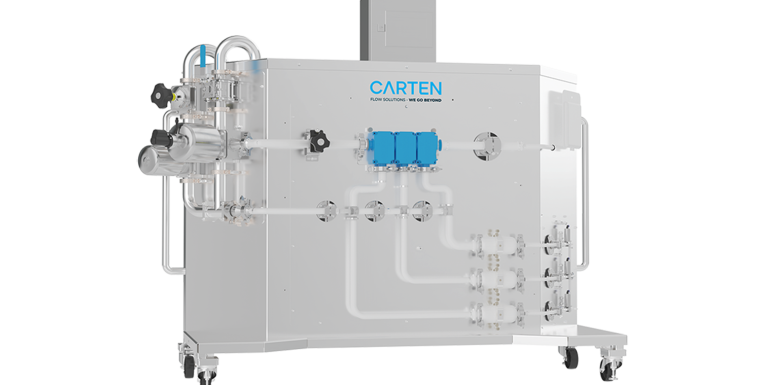

Omnia Fluid Transfer Modules
Integrated Systems for Single-Use Applications
Utilising the advantage of the Carten patented BPV series, the fluid transfer modules provide a turnkey system tailored for drug manufacturers allowing the plug-and-play automated transfer of fluid between applications.
Key Features
Fluid transfer for multiple applications, no valve changeout required
Suitable for use on any tubing brand or compound, up to 1” ID
Plug-and-play integrated system with all mechanical components and instrumentation
Includes electrical and PLC hook-up, full FAT
Typical Applications
ALL upstream, downstream, fill-finish applications in single-use, applications requiring multiple line size interchangeability, high pressure pump shut-off, PUPSIT, automated & mobile fluid transfer applications.
Key Specifications
| Materials of Construction | Cleanliness | Specifications | Options |
|---|---|---|---|
| 304/316 stainless |
Manufactured in Clean White Room |
Full FAT as per site and project specification |
PLC and electrical components as per user requirement |
| Approved stainless or polymer product facing side |
Particulates analysed versus compressor impact on tubing |
Cycle-tested versus specified tubing to assure perfusion usage |
Manual, electric, or pneumatic |
| Conduit in stainless or polymer options |
Instrument air exhaust filtered for Cleanroom use |
Electropolished as per ASME BPE, ASTM A967 |
Multiple tube holders allowing tubing line size changeout |
| Stainless electrical cabinet |
No lubricant or grease at tubing insert area |
Passivated as per ASME BPE, ASTM B912 |
4/20mA switching / signalling automation |
