CBV / CBVA

CBV Series

Carten Ball Valves

Semiconductor standards applied to ball valves for the market, VCR connectivity and semiconductor grade processing and analysis ensures suitability for specified applications.

CBV CBVA

Key Features

Available in line sizes up to 6”

TFM1600 internal and external seals

Minimal dead space for POC block configurations

Multiple block orientations and configurations (DBV etc)

Typical Applications

Vacuum exhaust, CFOS compatibility, low purity gas distribution, low purity laterals POC (low purity), shut-off functionality for gas distribution and high-volume abatement.

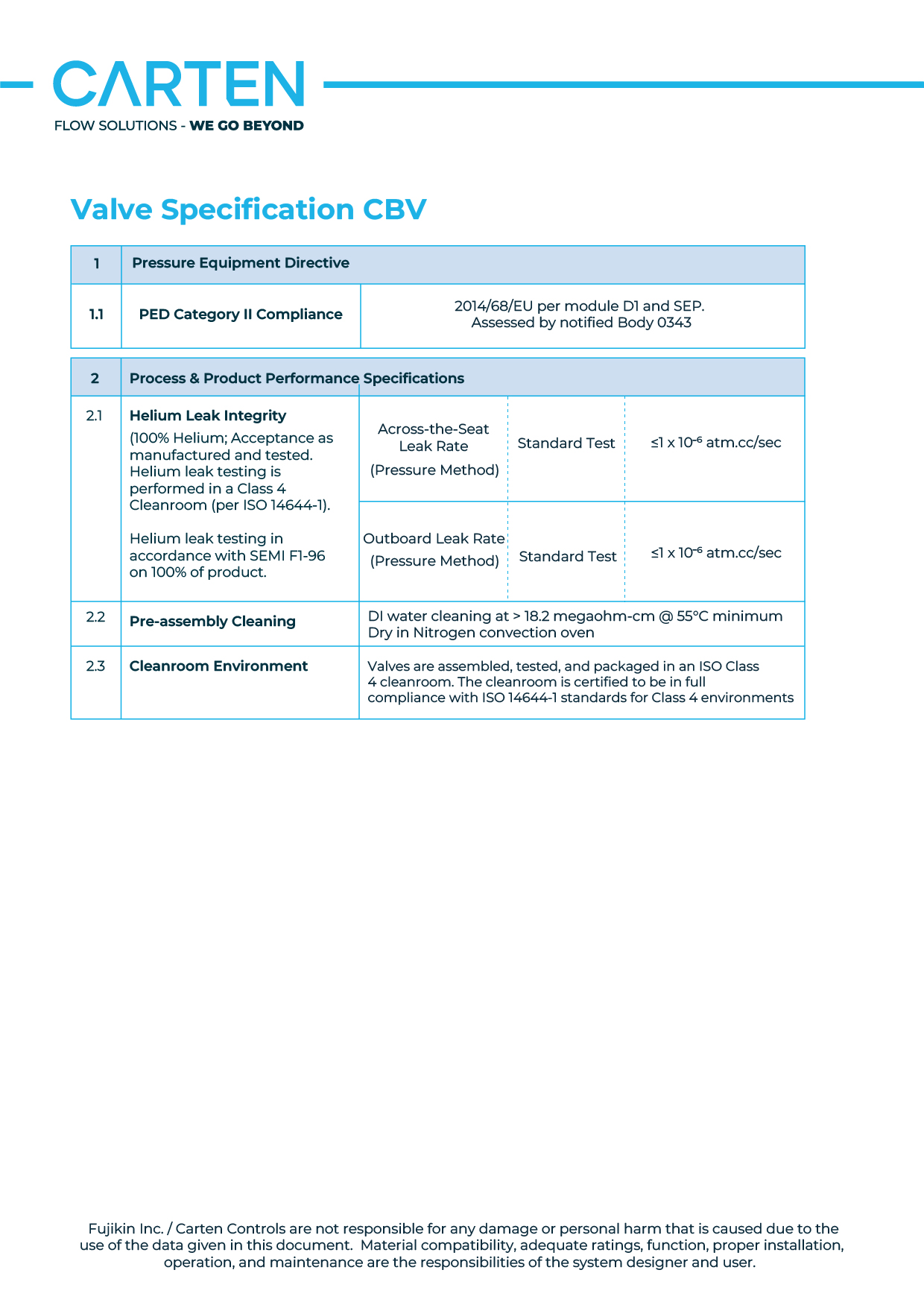

Key Specifications

Materials of Construction Cleanliness Specifications Options

316L stainless body and ball

Manufactured in Class 10 Cleanroom

Leak tested using Mass spectrometer <1x10(-6) mbar.l/s

Manual or pneumatic

316L stainless flange and components

Electropolished as standard

<30Ra micro-inch surface roughness

4/20mA switching / signalling automation

Cast 316L source

Welded to ensure ASTM A269 connection tubing

Pressure tested 100% production control

Multiple block orientations and configurations (SCBV etc)

TFM 1600 internal / external seals

Cleaned using 18.2MΩ·cm DI water

375p.s.i. operating pressure

Purge valve possible
